SW19SSL315
ActiveCML Innovative Technologies LTD

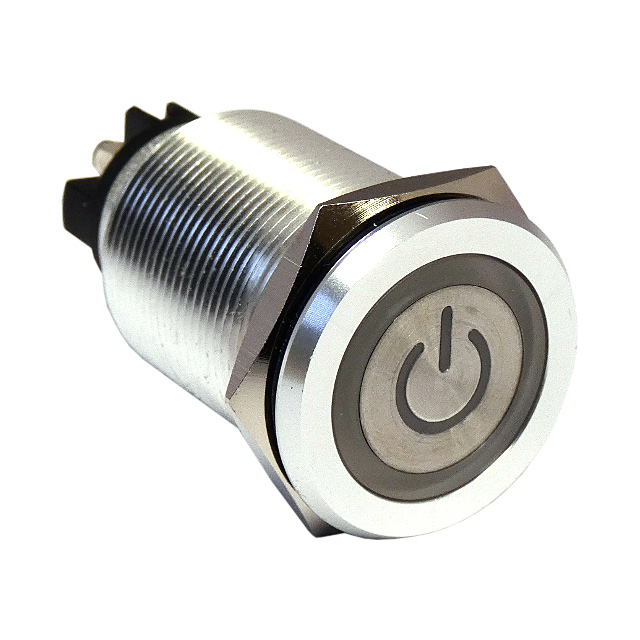

SWITCH PB SCREW ALT ACT PWR 110V
SW19SSL315
ActiveCML Innovative Technologies LTD
SWITCH PB SCREW ALT ACT PWR 110V
Description
General part information
SW19SSL315
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | SW19SSL315 |
|---|---|
| Actuator Marking | Power Symbol |
| Actuator Type | Round, Flush, Button |
| Circuit | DPST-NO/NC |
| Color | Red |
| Color - Actuator/Cap | Silver |
| Current Rating | 5 A |
| Electrical Life (Cycles) | 50000 |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 110 VAC |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 19 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 250 V |
