SMCJ140A
ActiveKYOCERA AVX
TVS DIODE 140VWM 227VC DO214AB
SMCJ140A
ActiveKYOCERA AVX
TVS DIODE 140VWM 227VC DO214AB
Description
General part information
SMCJ140A

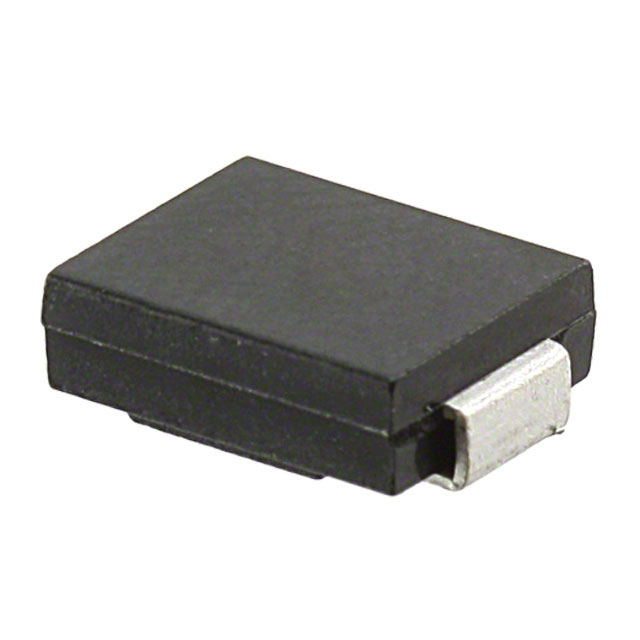

227V Clamp 6.6A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Technical Specifications
Parameters and characteristics for this part
| Specification | SMCJ140A |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse | 6.6 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | DO-214AB, SMC |
| Package Name | DO-214AB (SMC) |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | No |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 155 V |
| Voltage - Clamping (Max) | 227 V |
| Voltage - Reverse Standoff (Typ) | 140 V |
