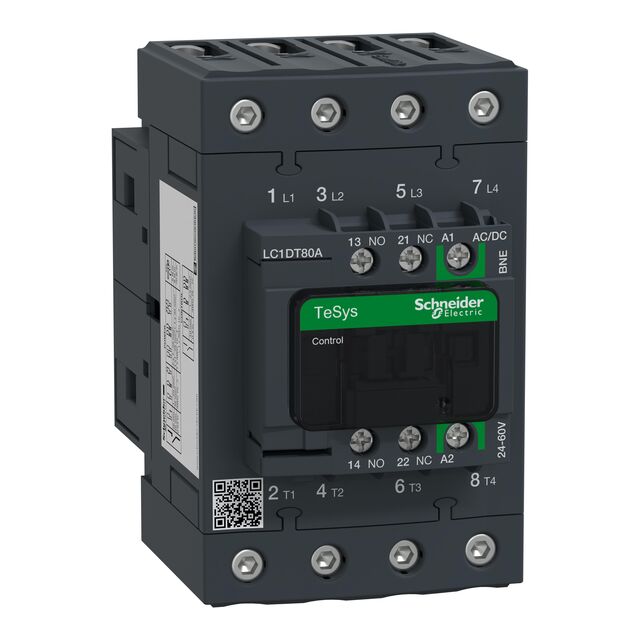

LC1DT80ABNE
ActiveSCHNEIDER ELECTRIC
TESYS CTR 4P80A AC3NO+NC24-60V A
LC1DT80ABNE
ActiveSCHNEIDER ELECTRIC
TESYS CTR 4P80A AC3NO+NC24-60V A
Description
General part information
LC1DT80ABNE
TESYS CTR 4P80A AC3NO+NC24-60V A
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DT80ABNE |
|---|---|
| Coil Voltage (Max) | 60 VAC/DC |
| Coil Voltage (Min) | 24 VAC |
| Coil Voltage (Type) | DC, AC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 80 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 65 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 80 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
