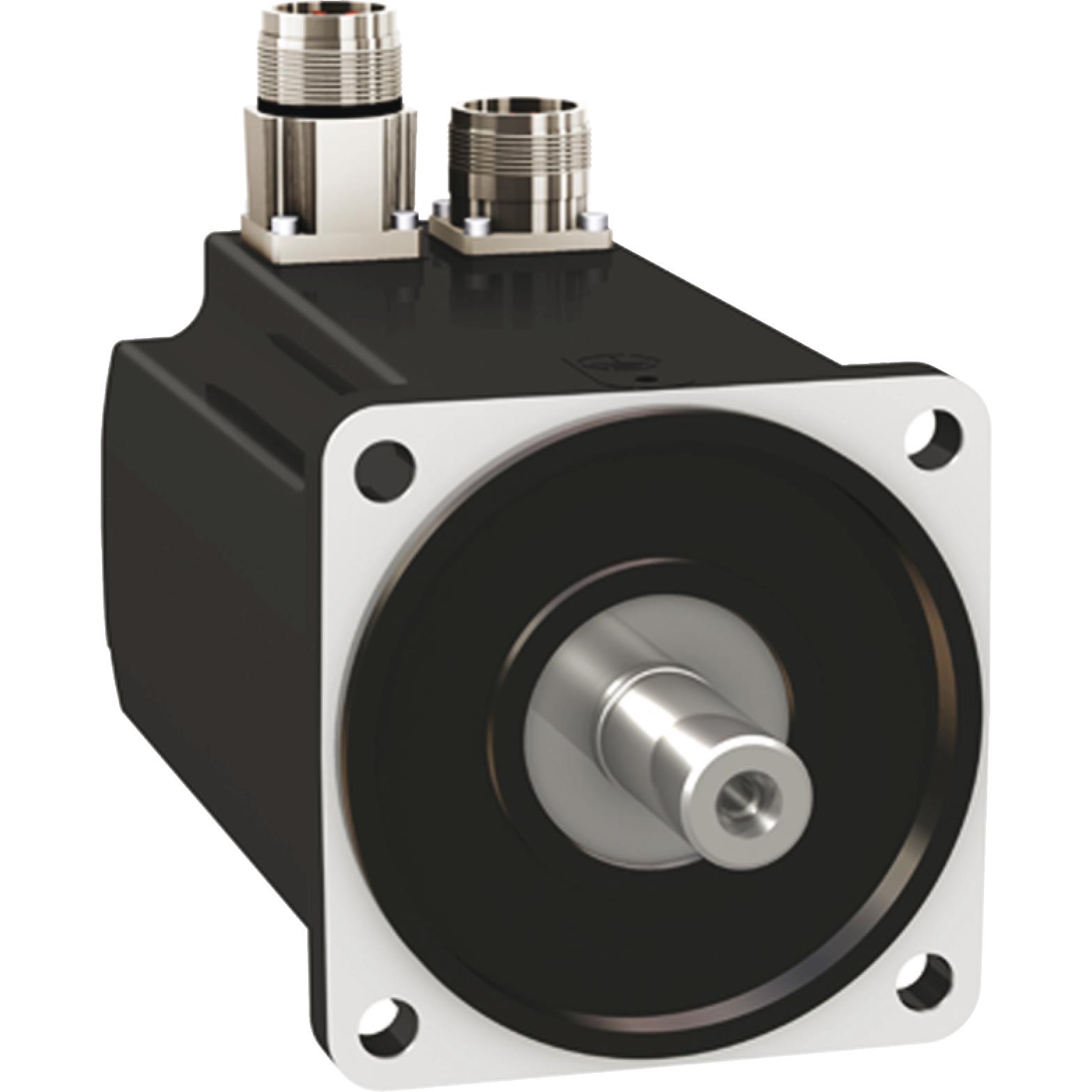

BMH1003T12A1A
ActiveSCHNEIDER ELECTRIC
MOTOR 100MM IP54 KEY ENC MULTI12
BMH1003T12A1A
ActiveSCHNEIDER ELECTRIC
MOTOR 100MM IP54 KEY ENC MULTI12
Description
General part information
BMH1003T12A1A
AC Motor Servomotor 6000 RPM 1.45kW 240VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BMH1003T12A1A |
|---|---|
| Diameter - Shaft | 0.75 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.57 in |
| Mounting Hole Spacing | 3.74 in |
| Power - Rated | 1.45 kW |
| RPM | 6000 RPM |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.937 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 5600 mNm |
| Torque - Rated (oz-in) | 793 oz-in |
| Type | AC Motor |
| Voltage - Rated | 240 V |
