LCCA30356-FT4
ActivePasternack
SMA MALE TO N MALE USING RG223 C
LCCA30356-FT4
ActivePasternack
SMA MALE TO N MALE USING RG223 C
Description
General part information
LCCA30356-FT4

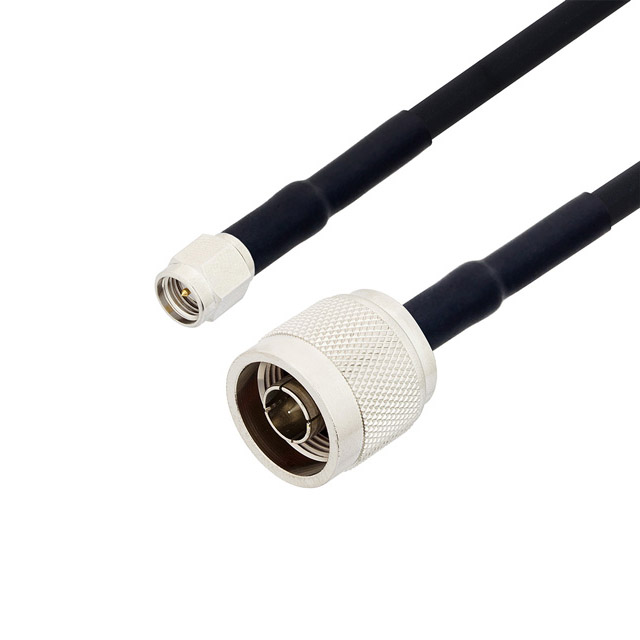

Cable Assembly Coaxial SMA to N-Type RG-223 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30356-FT4 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
