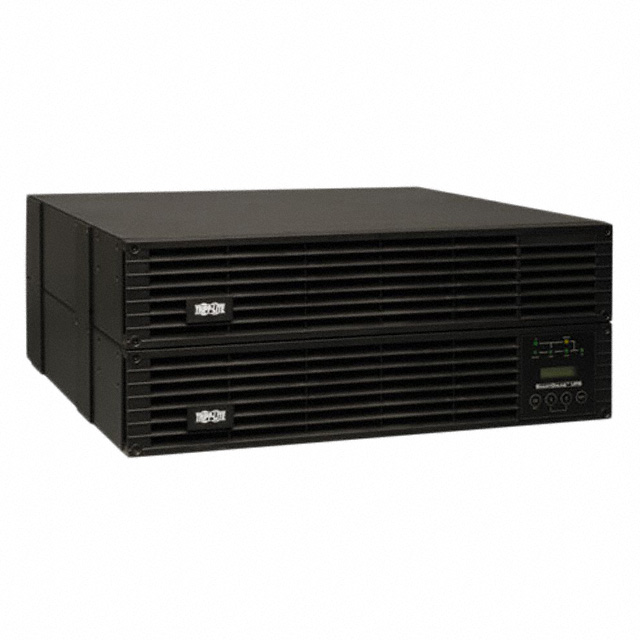

SU6000RT4UHV
ActiveEaton Tripp Lite
UNINTERRUPTIBLE POWER SUPPLY (UPS), RACK MOUNT, 4 OUTLETS, 6KVA / 5.4KW, 240 V, 240 V, 2 MIN
SU6000RT4UHV
ActiveEaton Tripp Lite
UNINTERRUPTIBLE POWER SUPPLY (UPS), RACK MOUNT, 4 OUTLETS, 6KVA / 5.4KW, 240 V, 240 V, 2 MIN
Description
General part information
SU6000RT4UHV
UNINTERRUPTIBLE POWER SUPPLY (UPS), RACK MOUNT, 4 OUTLETS, 6KVA / 5.4KW, 240 V, 240 V, 2 MIN
Technical Specifications
Parameters and characteristics for this part
| Specification | SU6000RT4UHV |
|---|---|
| AC Outlets (Count) | 4 count |
| Applications | Network, Single Phase |
| Approval Agency | CSA, FCC, UL |
| Backup Time - Max Load | 2 minutes |
| Cord Length | 10 ft |
| Form | Rackmount |
| Height | 6.85 in |
| Input Connector | NEMA L6-30P |
| Media Lines Protected | RS-232 |
| Output Connector | NEMA L6-20R, NEMA L6-30R |
| Output Connector Quantity (NEMA L6-20R) | 2 |
| Output Connector Quantity (NEMA L6-30R) | 2 |
| Power - Rated (VA) | 6 kVA |
| Power - Rated (W) | 5400 W |
| Size / Dimension Length | 20.669 in |
| Size / Dimension Width | 17.48 in |
| Type | Online (Double Conversion) |
| Voltage - Input | 200 VAC, 240 VAC, 208 VAC |
| Voltage - Output | 208 V, 240 V, 200 V |
