737060-2
ActiveTE Connectivity AMP Connectors
AMPLIVAR SPL 5 SERR W/INS SUP
737060-2
ActiveTE Connectivity AMP Connectors
AMPLIVAR SPL 5 SERR W/INS SUP
Description
General part information
737060-2

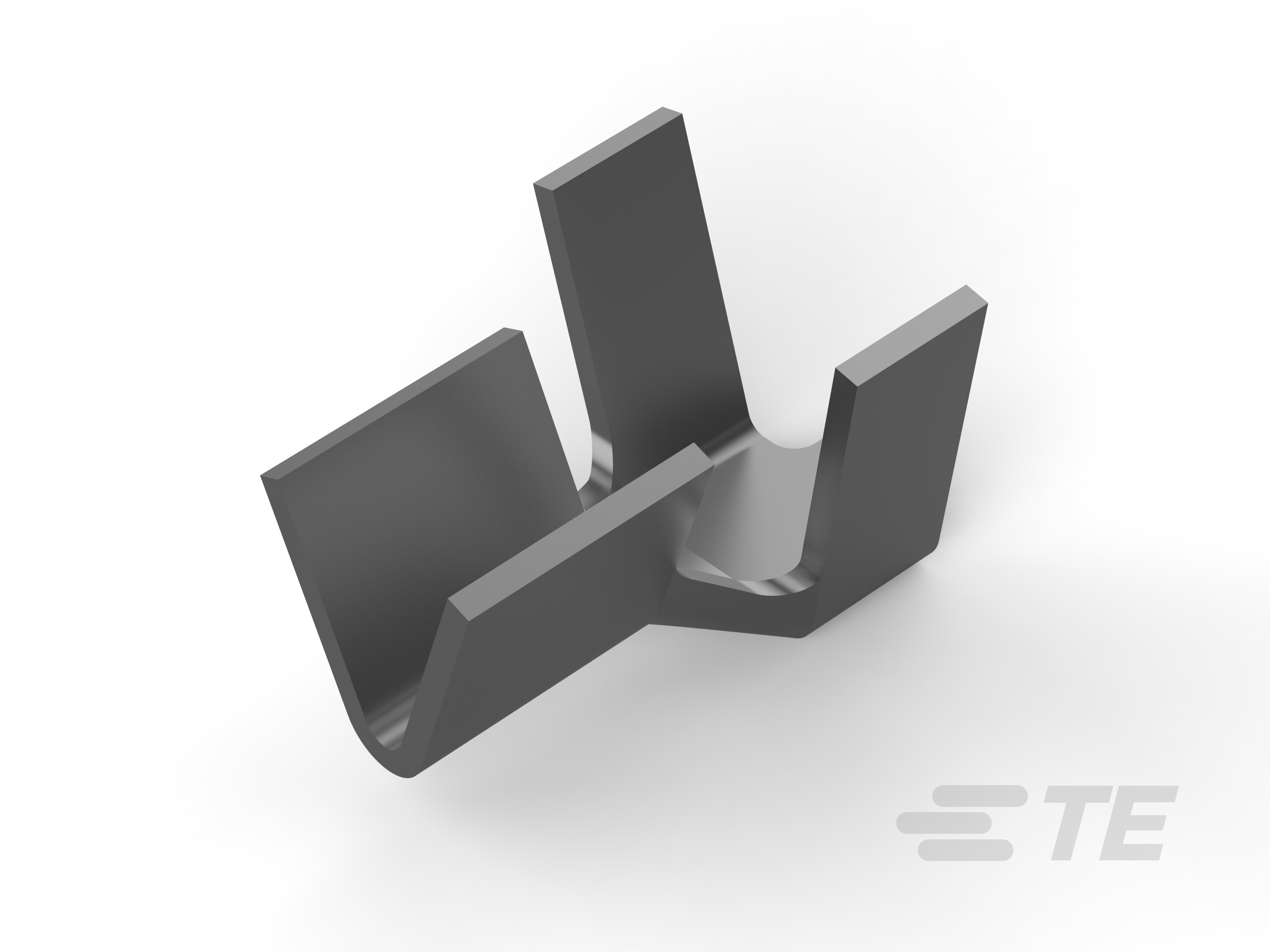

Pigtail Splice, 19 – 13 AWG, .7 – 2.5 mm² Wire, 3 Splice Capacity, Serrated, 1300 – 5670 CMA, Brass, 5 Serration, 4.1 mm [.16 in] Length, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 737060-2 |
|---|---|
| Features | Serrated Mating Area |
| Terminal Type | Open Band, Crimpband |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 19 AWG |
| Wire Gauge (AWG) (Min) | 13 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
