517D477M016CC8PE3
ObsoleteVishay Dale

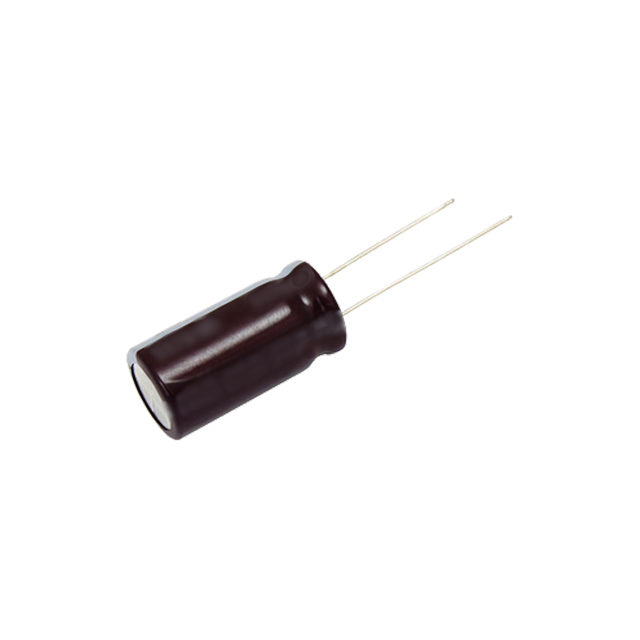

CAP ALUM 470UF 20% 16V RADIAL TH
517D477M016CC8PE3
ObsoleteVishay Dale
CAP ALUM 470UF 20% 16V RADIAL TH
Description
General part information
517D477M016CC8PE3
470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 517D477M016CC8PE3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.197 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 592.5 mA, 395 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
