SZ5-M1-W0-00-V3/W1-CA
UnknownSeoul Semiconductor Inc.

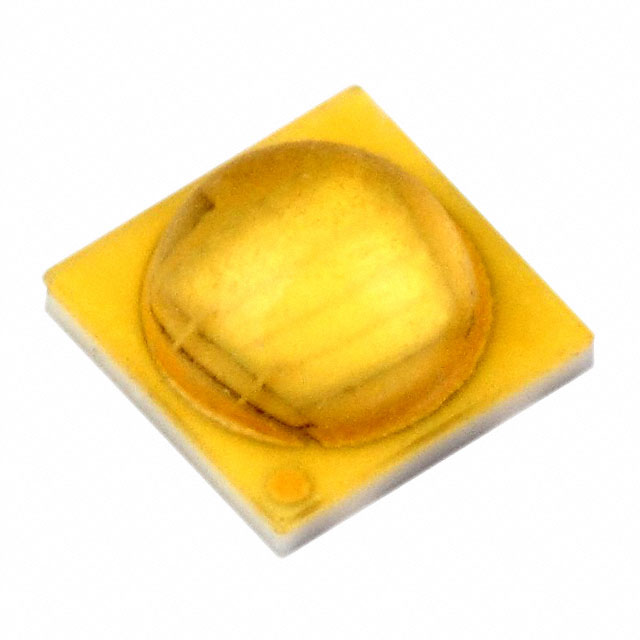

LED Z5-M1 COOL WHITE 5300K SMD
SZ5-M1-W0-00-V3/W1-CA
UnknownSeoul Semiconductor Inc.
LED Z5-M1 COOL WHITE 5300K SMD
Description
General part information
SZ5-M1-W0-00-V3/W1-CA
LED Lighting Z5-M1 White, Cool 5300K 2.95V 350mA 118° 1414 (3535 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SZ5-M1-W0-00-V3/W1-CA |
|---|---|
| CCT (K) | 5300 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max | 1.5 A |
| Current - Test | 350 mA |
| Flux (Maximum) | 160 lm |
| Flux (Minimum) | 140 lm |
| Flux (Nominal) | 150 lm |
| Height - Seated (Max) | 0.085 in |
| Lumens/Watt | 145 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1414 (3535 Metric) |
| Package Name | SMD |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.138 in |
| Thermal Resistance of Package | 4.5 °C/W |
| Viewing Angle | 118 ° |
| Voltage - Forward (Vf) (Typ) | 2.95 V |
