1634201-1
ActiveTE Connectivity AMP Connectors
SWITCH ROCKER DPST 16A 125V
1634201-1
ActiveTE Connectivity AMP Connectors
SWITCH ROCKER DPST 16A 125V
Description
General part information
1634201-1

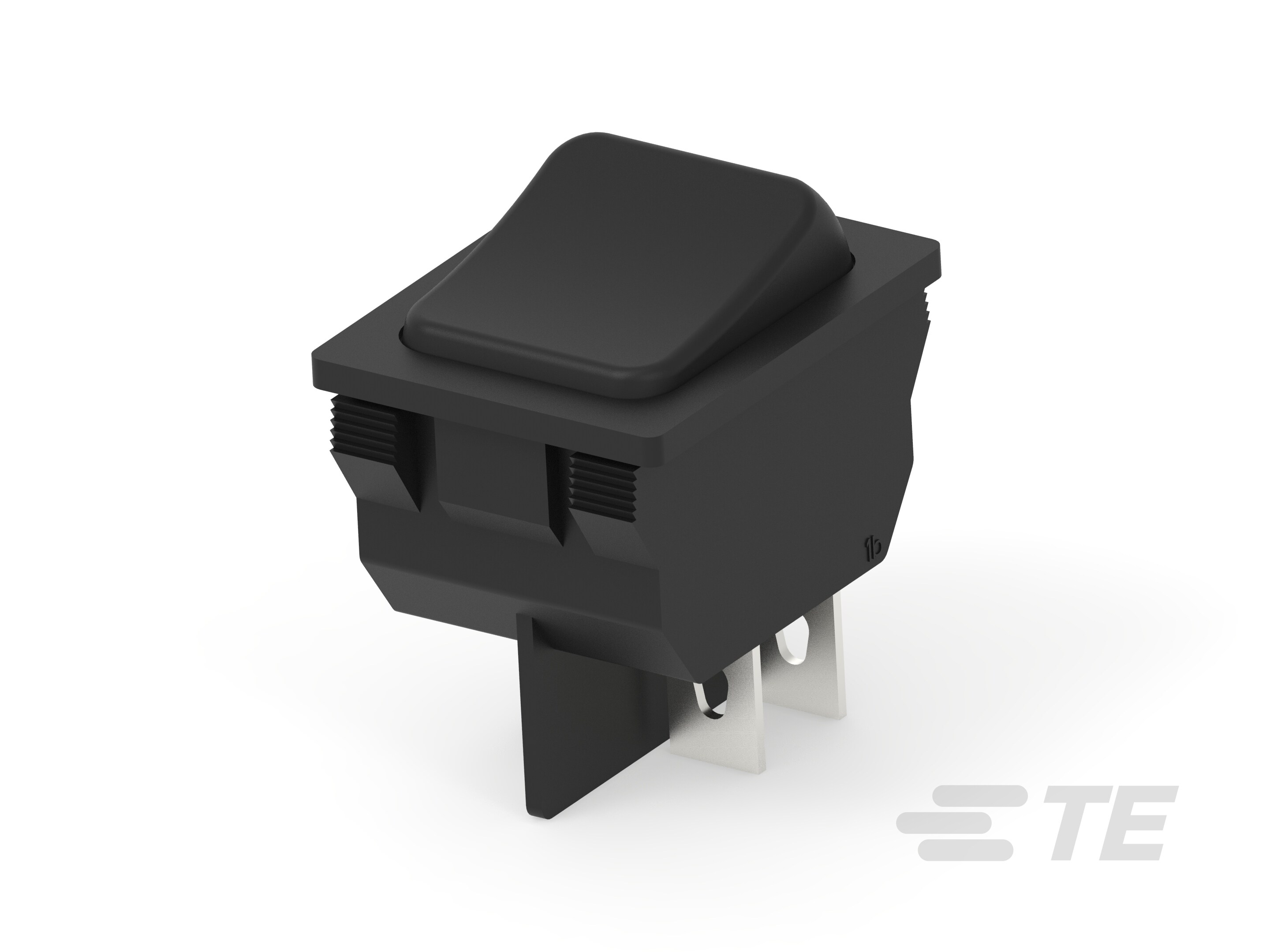

Power Rocker Switch, Panel Mount, 30.2 x 22.2 mm [1.19 x .874 in] Panel Cutout, Silver Tin Oxide Contact Plating, No Indicator
Technical Specifications
Parameters and characteristics for this part
| Specification | 1634201-1 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating | 16 A |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Length | 30.2 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 22.2 mm |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | On-Off |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
